Fire Resistant Central Loose Tube Fiber Optic Cables

Application:

These cables are characterized by light weight and small diameter, suitable for both aerial and duct installation.

They are mainly installed inside buildings, tunnels,subways or closed areas in general, specially designed to

guarantee the signal transmission even in case of fire. The cable can also be used for direct burial for armoured

version.

Standards:

Basic design to Telcordia GR-20 / RUS 7 CFR 1755.900 (REA PE-90) / ICEA S 87-640

FIRE PERFORMANCE

Circuit Integrity

IEC 60331-25



Flame Retardance (Single Vertical Wire Test)

EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1*



Halogen Free

IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1; BS 6425-1*



No Corrosive Gas Emission

IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2; BS 6425-2*



Minimum Smoke Emission

IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2*; BS 7622-1&2*

No Toxic Gases

NES 02-713; NF C 20-454

Oxygen Index

Min. 35%

Temperature Index

Min. 280°C

Note: Asterisk * denotes superseded standard.

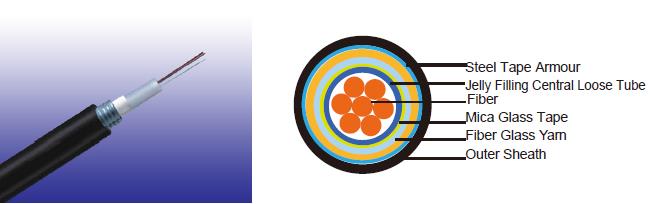

Cable Construction:

Fibers: Single mode fibers, with loose tube technology.

Structure: Central loose tube cable contains one tube with 12 core single mode fibers, which are filled with

water blocking gel.

Fire barrier: The jelly filled tube is wrapped with a fire barrier mica glass tapes.

Water blocking: The jelly filled tube is waterblocked by using swellable tape and thread.

Reinforcement: Fiber glass is wound around the tube to provide physical protection and tensile strength, with

added fire protection.

Armouring(optional): Corrugated steel tape armour is applied over cable core.

The 0.15mm thick steel tape is coated with a copolymer and applied with an overlap.

Outer Sheath: Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1

Fiber Colour Code:

Fiber colour code

1

Red

7

Brown



2

Green

8

Violet



3

Blue

9

Turquoise



4

Yellow

10

Black



5

White

11

Orange



6

Grey

12

Pink

Construction:

Fire Resistant Central Loose Tube Fiber Optic Cables

Corrugated Steel Tape Armour

Construction Parameters:

Fiber Count

Nominal Overall Diameter

Approx. Weight

Tension load

Crush

No.

mm

kg/km

N

N/100mm

12

10.5

116

500

1000

Physical And Thermal Properties:

Temperature range during operation: -30°C - +70°C

Temperature range during storage: -50°C - +70°C

Minimum bending radius: 20 x Overall Diameter

Mechanical Properties:

Repeated Impact:

2.0 N.m (J)

Twist (Torsion):

180×10 times, 125×OD



Cyclic Flexing:

25 cycles for armoured cables;
100 cycles for unarmoured cables.

Crush Resistance:

263N/cm (150lb/in)

Fiber Compliance:

Temperature Cycling

IEC60794-1-2-F2

Tensile Strength

IEC60794-1-2-E1A

Crush

IEC60794-1-2-E3

Impact

IEC60794-1-2-E4

Repeated Bending

IEC60794-1-2-E6

Torsion

IEC60794-1-2-E7

Kink

IEC60794-1-2-E10

Cable Bend

IEC60794-1-2-E11

Cool Bend

IEC60794-1-2-E11
